Baumer CX series
VCXG.2-15C
| 一般資訊 | |
|---|---|
| Sensor : | Sony IMX273 Gen2 |
| 彩色/黑白 | Color |
| 感光元件類型: | 1/2.9″ CMOS |
| 快門類型: | 動態/ Global Shutter |
| 解析度 : | 1440 × 1080 px |
| 畫素尺寸 | 3.45 × 3.45 µm |
| 曝光時間: | 0.001 … 60000 ms |
| 傳輸介面 | GIge 介面傳輸速率1000 Mbit/s；快速乙太網路接口，傳輸速率100 Mbit/s |
| I/O介面 : | M8 / 8Pin (SACC-DSI-M8MS-8CON-M8-L180) |
| Power : | M8/8Pin or GIge PoE 12 … 24 VDC (外部電源)。 36 … 57 VDC (PoE) |
| 電源電壓範圍+Vs | |
| 12 … 24 VDC (外部電源) | |
| 36 … 57 VDC (PoE) | |
| 耗電量 | |
| Approx. 2.5 W @ 12 VDC and 10 fps | |
| Approx. 3.2 W @ 48 VDC (PoE) and 10 fps | |
| Dark noise | 2.13 e- |
| Saturation capacity : | 9308 e- |
| Dynamic range : | 70.5 dB |
| Signal-to-noise ratio : | 39.7 dB |
| Quantum efficiency | 46 % @ 465 nm |
| 57.5 % @ 536 nm | |
| 53.8 % @ 631 nm | |
| 46.4 % @ 467 nm | |
| 58.7 % @ 533 nm | |
| 53.5 % @ 630 nm | |
| I/O | |
| Lines | 1 input line |
| 1 output line | |
| 2 general purpose lines | |
| Output line sources | Off |
| Exposure Active | |
| Timer1 | |
| Readout Active | |
| User0 | |
| User1 | |
| User2 | |
| TriggerReady | |
| 影像格式 | |
| Full Frame, 1440 × 1080 px, max. 79 fps | |
| Binning 2×2, 720 × 540 px, max. 120 fps | |
| Binning 2×1, 720 × 1080 px, max. 120 fps | |
| Binning 1×2, 720 × 540 px, max. 120 fps | |
| 影像格式,最高FPS（Burst模式） | Full Frame, 1440 × 1080 px, max. 121 fps |
| 像素格式 | BayerRG8 |
| BayerRG10 | |
| BayerRG12 | |
| BayerRG12 Packed | |
| Mono8 | |
| Mono10 | |
| Mono12 | |
| Mono12 Packed | |
| RGB8 | |
| BGR8 | |
| 外觀規格 | |
| 鏡頭接環 : | C-Mount |

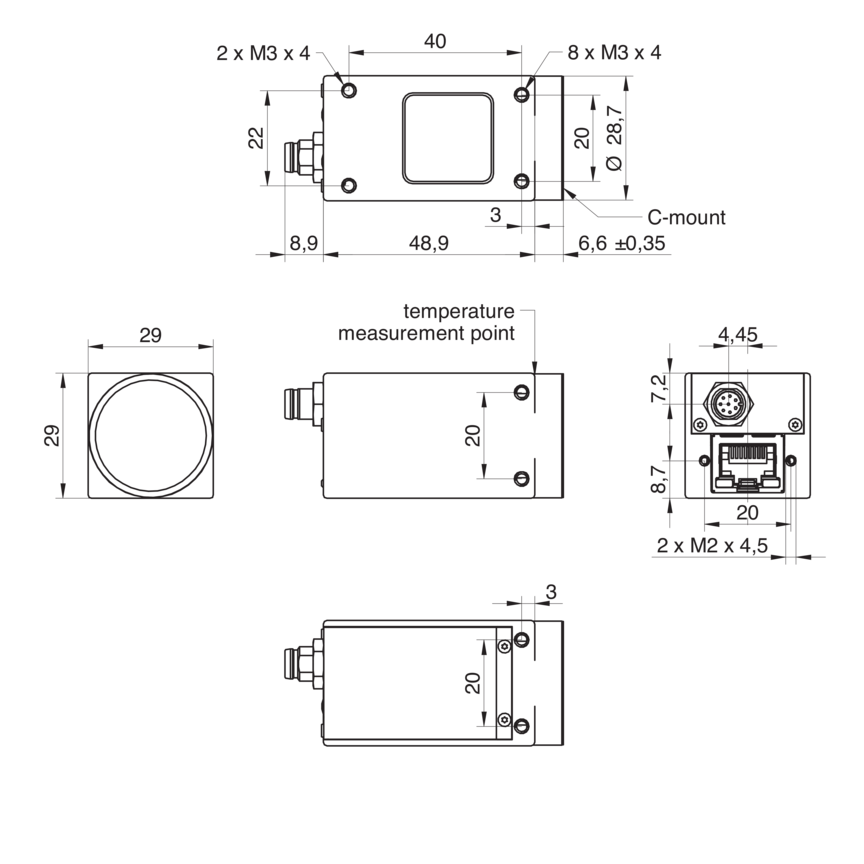

| 外殼尺寸 (L x W x H) | 49 x 29 x 29 mm |
| 重量 : | ≤ 120 g |
| 材質: | 壓鑄鋅 , 烤漆 |
| 工作環境 | |
| 工作温度 : | 0…+65 ° (测量點) |
| 儲存溫度 : | -20…+70 °C |
| 濕度 : | 10…90% (不结霜) |
| 防護等級 : | IP 40 (已安装鏡頭及線材) |
| 內建影像緩存 : | 141 MB |
| 認證標準 | |
| CE | |
| UL recognized |
| Digital I/Os | |
|---|---|
| Lines | 1 input line |
| 1 output line | |
| 2 general purpose lines | |
| Output line sources | Off |
| Exposure Active | |
| Timer1 | |
| Readout Active | |
| User0 | |
| User1 | |
| User2 | |
| TriggerReady | |
| Image preprocessing | |
| Analog controls | Gain (0 … 12 dB) |
| Offset (0 … 63 LSB 10 Bit) | |
| Color models | Mono |
| Raw Bayer | |
| RGB | |
| BGR | |
| Color processing | Integrated color processor for high quality color calculation |
| Camera features | |
| Basic Functions | Exposure |
| Gain / Color Gain | |
| Trigger / Exposure Active (Flash) | |
| Binning 2×2 | |
| Partial Scan | |
| Offset | |
| Free Running Mode (Live Image) | |
| Auto Functions | Exposure Auto |
| Gain Auto | |
| White Balance Auto | |
| Color Transformation Auto | |
| Image Pre-processing | Image Flipping (X/Y) |
| Color Processing (RGB, BGR, Mono) | |
| Color Enhancement (with optimized ColorTransformationMatrix) | |
| LUT / Gamma | |
| Acquisition / Interface | Burst Mode |
| Adjustable Frame Rate | |
| Device Link Throughput Limit | |
| Internal Image Buffer | |
| Synchronization | free running |
| trigger | |
| Trigger sources | Hardware |
| Software | |
| ActionCommand | |
| Trigger delay | 0 … 2 s, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events |
| Timer | |
| Trigger Delay | |
| Debouncer | |
| Counter | |
| Sequencer | |
| Trigger via Action CMD (GigE) | |
| Additional Output Modes (e.g. Trigger Ready) | |
| Chunk data inside transferred image | |
| Encoder support via Counter End trigger source | |
| Additional Functions | User Set |
| Integrated temperature sensor | |
| Readable additional information (e.g. sensor information) | |
| Save Custom Data | |
| Internal image buffer | 36 MB |
| 8 images (Trigger Mode) | |
| 1 image (Free Running Mode) |
