| Sensor / 感測器 | Sony IMX178 |
| Mono/Color / 單色 / 彩色 | Mono |
| Sensor type / 感測器類型 | 1/1.8″ CMOS |
| Shutter type / 快門類型 | Rolling shutter |
| | Global reset shutter |
| Resolution / 解析度 | 3072 × 2048 px |
| Pixel size / 像素尺寸 | 2.4 × 2.4 µm |
| Exposure time / 曝光時間 | |
| | |
| | |
| Data quality (EMVA 1288 typical) / 數據品質（EMVA 1288 標準典型值 | | |
| Dark noise / 暗雜訊 | 6.24 e- |
| Saturation capacity / 飽和容量 / 滿井容量 | 14322 e- |
| Dynamic range / 動態範圍 | 66.4 dB |
| Signal-to-noise ratio / 信噪比 (SNR) | 41.6 dB |
| Quantum efficiency / 量子效率 (QE) | 0.4 % @ 1042 nm |
| | 4.7 % @ 840 nm |
| | 2.2 % @ 930 nm |
| | 18.6 % @ 406 nm |
| | 75.6 % @ 533 nm |
| | |
| Acquisition formats / 取像格式 | | |
| Image formats, interface frame rate max. / 影像格式、介面 | Full Frame, 3072 × 2048 px, max. 19 fps |
| | Binning 2×2, 1536 × 1024 px, max. 29 fps |
| | Binning 2×1, 1536 × 2048 px, max. 29 fps |
| | Binning 1×2, 3072 × 1024 px, max. 29 fps |
| | |
| Image formats, aquisition frame rate max. (Burst Mode . 影像格式、採集) | Full Frame, 3072 × 2048 px, max. 29 fps |
| | |
| Pixel formats / 像素格式 | Mono8 |
| | Mono10 |
| | Mono12 |
| | Mono12 Packed |
| | |
| | |
| | |
| | |
| | |
| | |
| Image preprocessing / 影像預處理 | | |
| Analog controls / 類比控制 | |
| | |
| Color models / 色彩模型 | Mono |
| | |
| Camera features / 相機功能特性 | | |
| Basic Functions / 基本功能 | Exposure |
| | Gain |
| | Trigger / Exposure Active (Flash) |
| | Binning 2×2 |
| | Partial Scan |
| | Offset |
| | Free Running Mode (Live Image) |
| | |
| Auto Functions / 自動功能 | Exposure Auto |
| | Gain Auto |
| | |
| Image Pre-processing / 影像預處理 | Image Flipping (X/Y) |
| | LUT / Gamma |
| | |
| Acquisition / Interface / 採集 / 介面 | Burst Mode |
| | Adjustable Frame Rate |
| | Short Exposure Time Enable |
| | Device Link Throughput Limit |
| | Internal Image Buffer |
| Synchronization | |
| | free running |
| | trigger |
| | |
| Trigger sources / 觸發源 | Hardware |
| | Software |
| | ActionCommand |
| | |
| Trigger delay / 觸發延遲 | 0 … 2 s, tracking and buffering of up to 256 trigger signals |
| | |
| Process Synchronization / 程序同步 | Events |
| | Timer |
| | Trigger Delay |
| | Debouncer |
| | Counter |
| | Sequencer |
| | Trigger via Action CMD (GigE) |
| | Additional Output Modes (e.g. Trigger Ready) |
| | Chunk data inside transferred image |
| | Encoder support via Counter End trigger source |
| | |
| Additional Functions / 附加功能 | User Set |
| | Integrated temperature sensor |
| | Readable additional information (e.g. sensor information) |
| | Save Custom Data |
| | Switchable Device Indicator Mode (LED) |
| | Calibration data |
| | Camera calibration data (user defined storage for intrinsic / extrinsic camera parameters, and geometry distortion values) |
| | Customer data storage (128 bytes user defined) |
| | |
| Internal image buffer / 內部影像緩存 | |
| | |
| | |
| | |
| | |
| Data interface / 數據傳輸介面 | Gigabit Ethernet, Transfer rate 1000 Mb |
| | |
| Process interface / 程序控制介面 | M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) |
| | |
| Power supply / 電源供應 | via M8/8 pins or Power over Ethernet (PoE) |
| | |

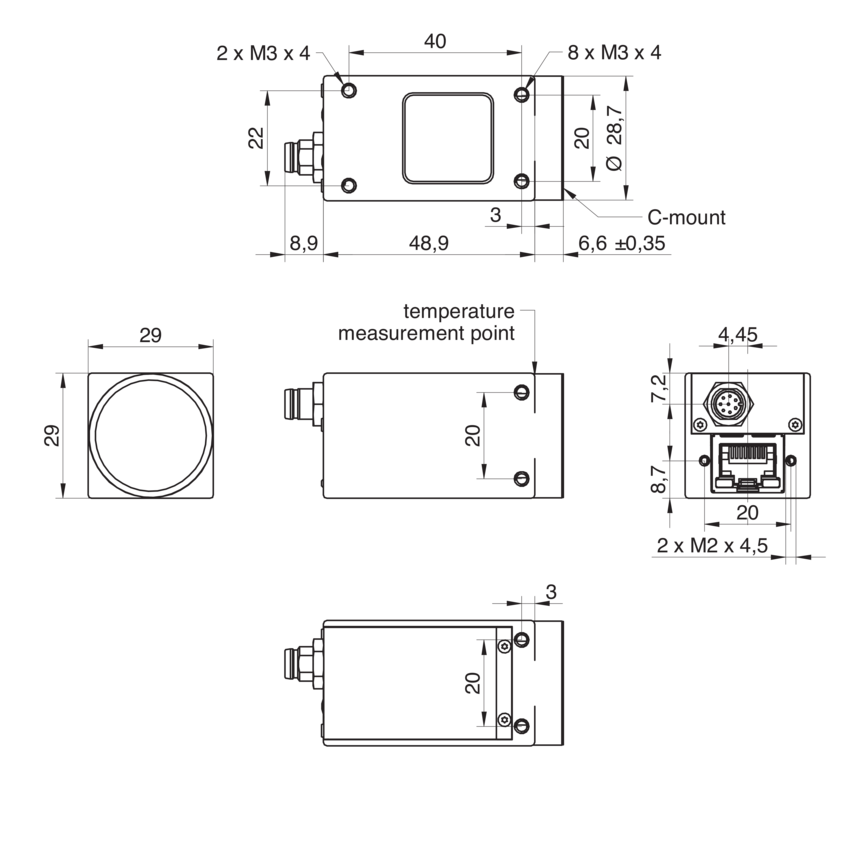

| Mechanical data. /. 機械數據 / 結構參數 | | |
| Lens mount / 鏡頭接口 | C-mount |
| Width / Height / Depth | 29 mmx 29mm x49mm |
| Weight / 重量 | ≤ 120 g |
| | |
| Material / 材質 | zinc die casting, baked varnish / 鋅合金壓鑄 (外殼材質) |
| | |
| Electrical data. / 電氣數據 / 電子參數 | | |
| Voltage supply range +Vs / 供電電壓範圍 | 12 … 24 V DC (external power supply) |
| | 36 … 57 V DC (Power over Ethernet) |
| | |
| Power consumption / 功耗 | Approx. 2.6 W @ 12 VDC and 19 fps |
| | Approx. 3.2 W @ 48 VDC (PoE) and 19 fps |
| | |
| | |
| Non-volatile memory / 快取記憶體 | | |
| Flash memory size / 閃存容量 | 128 kB |
| | |
| Environmental conditions / 環境條件（如工作溫度、濕度等） | | |
| Operating temperature /. 工作溫度 | 0 … +65 ° @ T = measurement point |
| Storage temperature. / 儲存溫度 | -20 … +70 °C |
| Humidity. /. 濕度 | 10 … 90 % (non-condensing) |
| Protection class. / 防護等級 | IP 40 (with mounted lens and cable) |
| | |
| Digital I/Os /. 數位輸入/輸出 (I/O) | | |
| Lines / 線路 / 引腳 | 1 input line |
| | 1 output line |
| | 2 general purpose lines |
| | |
| Output line sources | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| Conformity. / 標準認證 | | |
| Conformity /. 認證 | CE |
| | UL recognized |
| | KC (R-R-BKR-VCXG2-65MR) |
| | |
